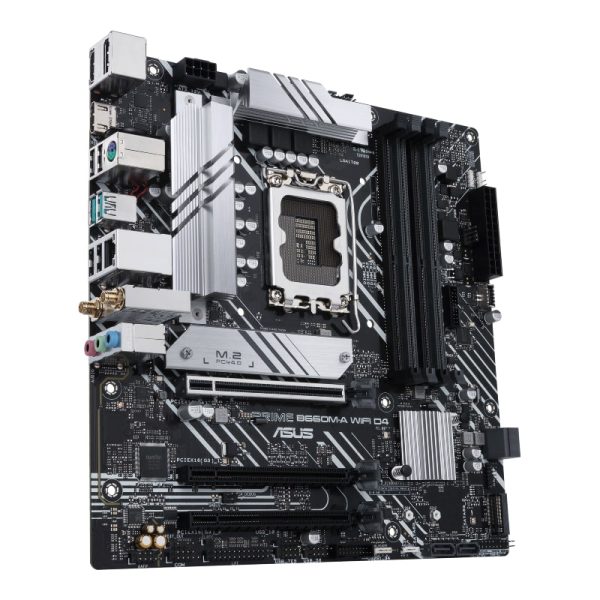

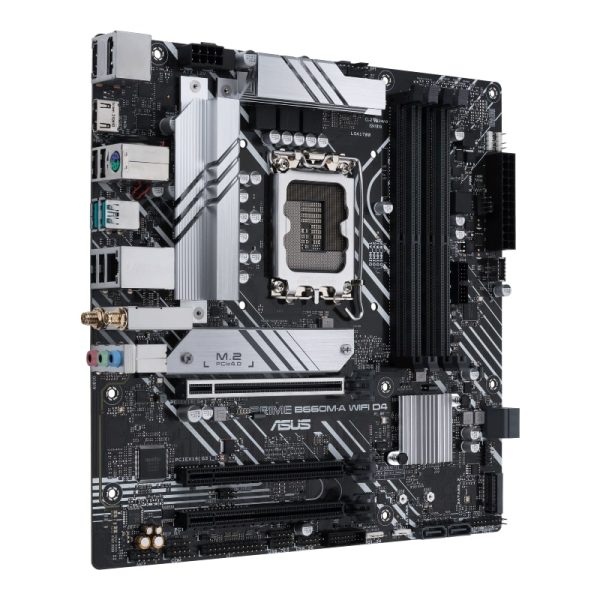

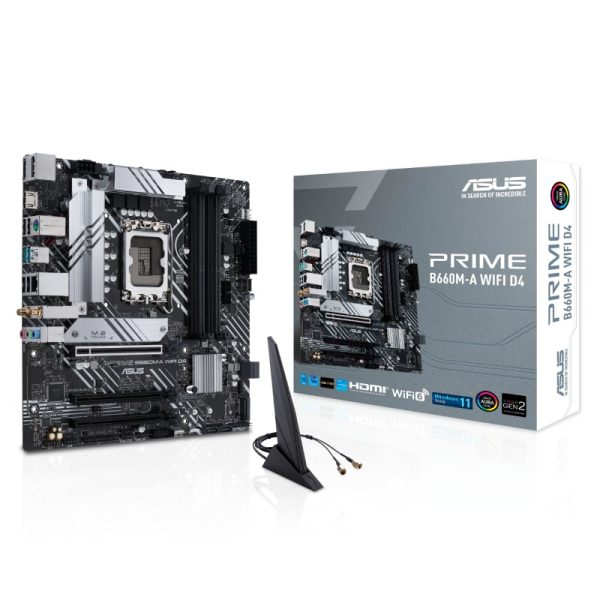

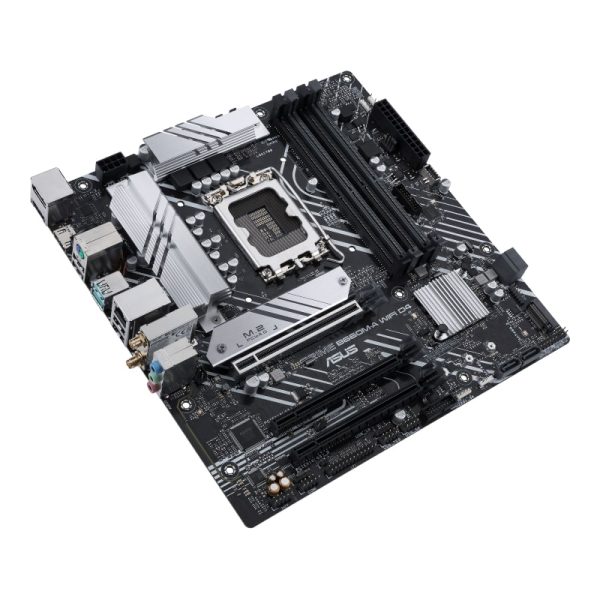

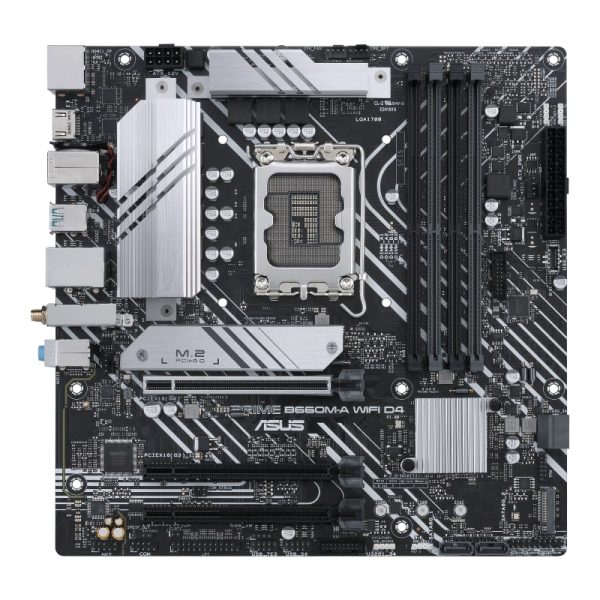

ASUS PRIME B660M-A WiFi D4 Motherboard
ASUS PRIME B660M-A WiFi D4 Motherboard Overview
Cooler by Design
ASUS Prime B660M-A WiFi D4 feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Quickly and easily find the option or setting you need.
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
Prime B660 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink – held in place by captive screws.
Removable captive screws reduce risk of drops or loss during heatsink removal.
Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards. Additionally to optimize cooling for GPU- and CPU-intensive tasks.
ASUS Prime B660M-A Wifi – built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS B660 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Robust Power Design
Stable power is essential to extract every last bit of performance out of 12th Generation Intel processors. PRIME B660M-A Wifi D4 is geared to cater to the demands of these high-core-count CPUs.
Proprietary connector augments the motherboard’s link to the PSU with 8 pin connector that passes 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.
Two M.2 slots (up to 64 Gbps)
Prime B660M-A WiFi D4 offers a total of two M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe® 4.0, enabling quicker boot-up and app load times with OS or application drives.
* Actual transmission speeds will be lower than the theoretical maximum speed.
PCIe® 4.0 Slot
Prime B660 motherboards are designed specifically for 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
Prime B660 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.
The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
