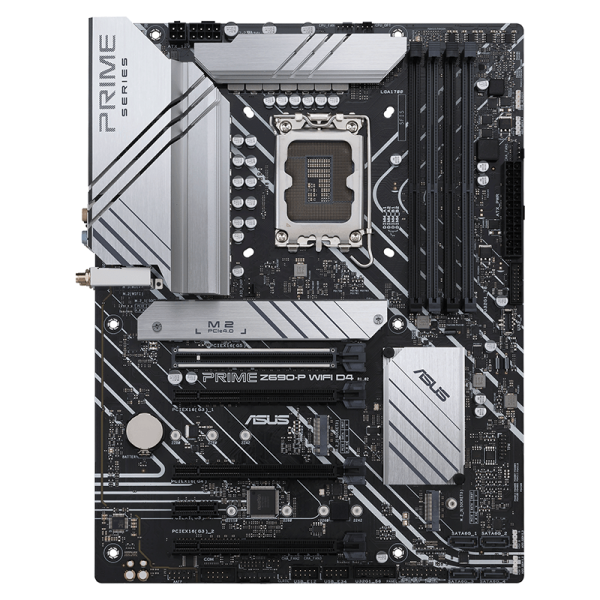

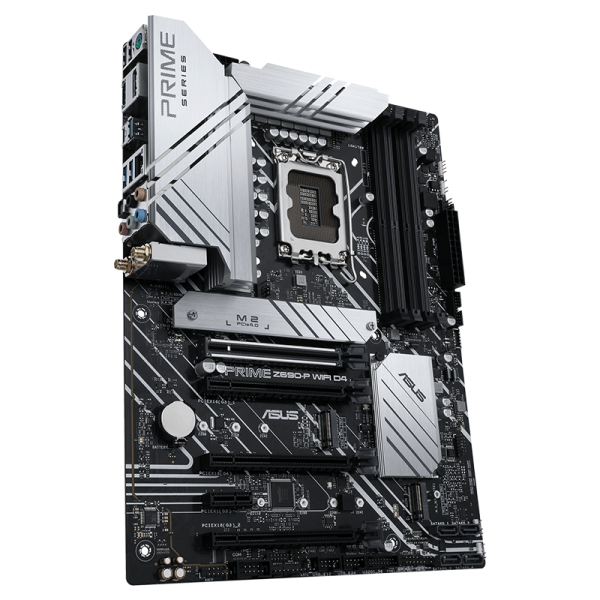

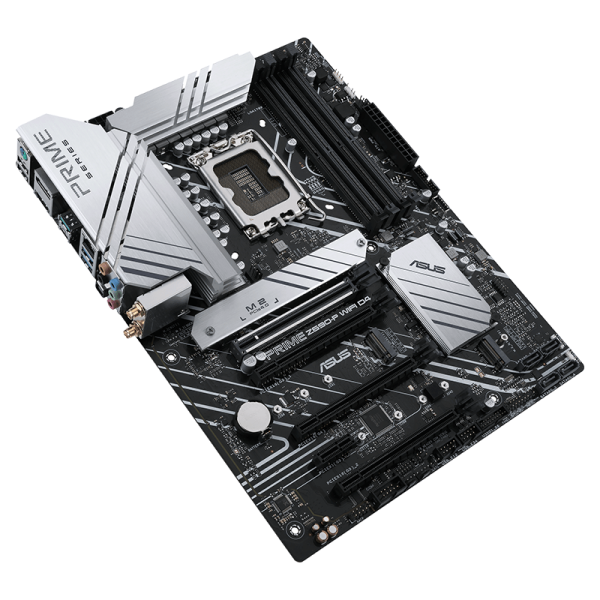

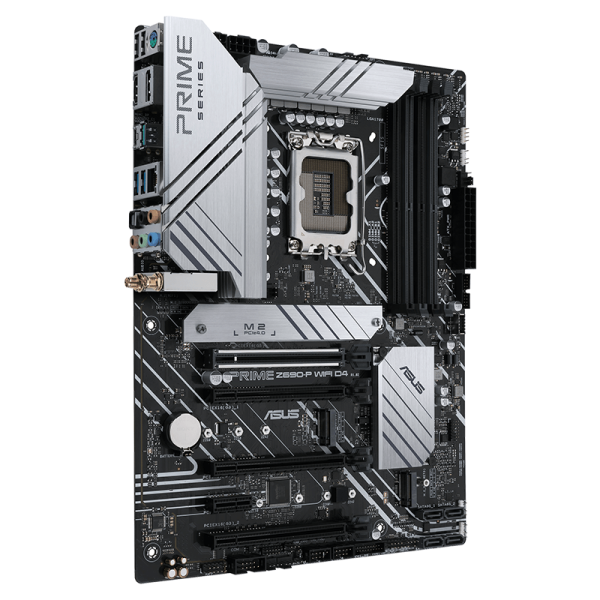

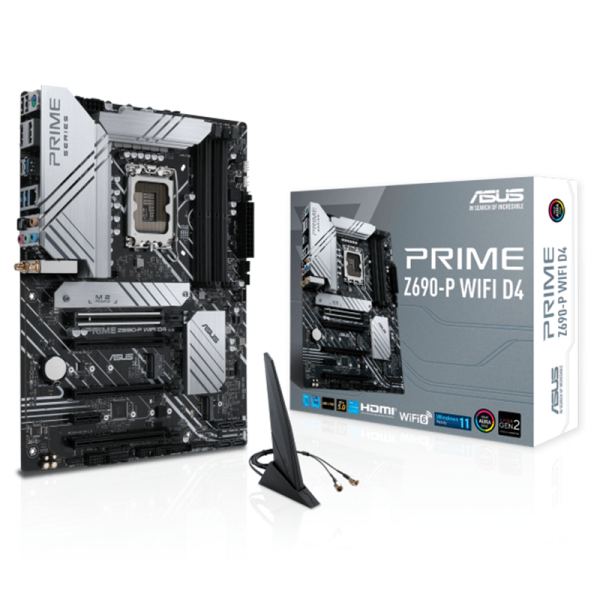

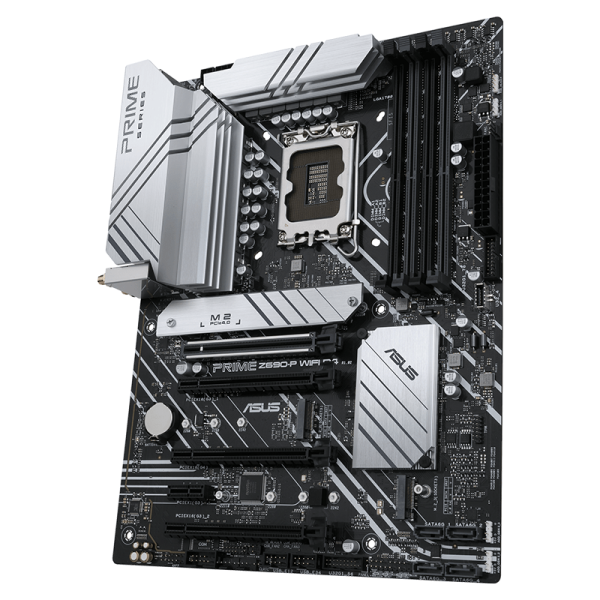

ASUS PRIME Z690-P WiFi D4 Motherboard


ASUS PRIME Z690-P WiFi D4 Motherboard Features

ASUS Prime Z690-P WiFi D4 offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplate and PCB cover.

  • Intel LGA 1700 socket: Ready for 12th gen Intel processors
  • Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
  • Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Next-gen connectivity: DDR4, PCIe 5.0, Intel WiFi 6, 2.5 Gb Ethernet, USB 3.2 Gen 2×2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 header support



ASUS PRIME Z690-P WiFi D4 Motherboard

ASUS PRIME Z690-P WiFi D4 Motherboard Description

ASUS PRIME Z690-P WiFi D4 Motherboard Overview

ASUS PRIME Z690-P WiFi D4 Motherboards are expertly engineered to unleash the full potential of 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-P WiFi D4 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

VRM Heatsinks and Thermal Pads

Two massive VRM heatsinks and high quality thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

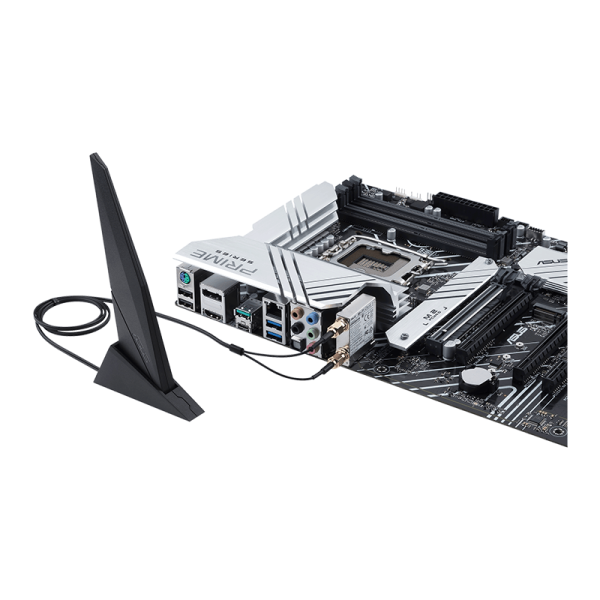

Intel WiFi 6

The Intel WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it’s optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

14+1 DrMOS

A VRM with 14+1 DrMOS delivers the power and efficiency that the latest Intel processors demand

DDR4 5333 (OC)

Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

Three M.2 slots (up to 64 Gbps)

PRIME Z690-P WiFi D4 Motherboard offers a total of three M.2 slots that support data transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot up an d app load times with OS or application drives.

PCIe 5.0 Slot

The 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward compatible CEM connectors for add in cards, and backward compatibility with previous versions of PCI Express.

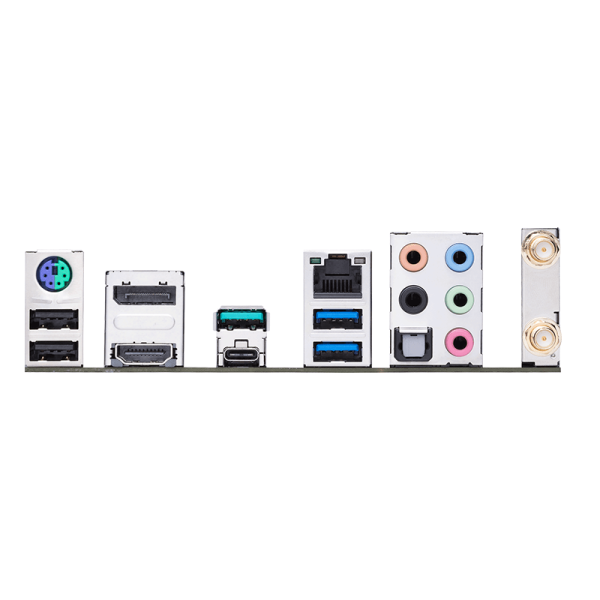

USB 3.2 Gen 2×2 Type-C

Numerous USB ports support high end rigs loaded with peripherals, including both front and rear USB Type C connectors with fast USB 3.2 Gen 2×2 for transmission speeds of up to 20 Gbps.

Thunderbolt 4 Support

Prime Z690 P Wifi D4 features Thunderbolt 4 support via an on board header. With the latest Intel certified ASUS ThunderboltEX 4 add on card, it can enable bi directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy chain function for multi screen connection and supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast charge devices.

Q-LED Core

The Q LED Core display produces light patterns by power LED during the Power On Self Test (POST) that can help users troubleshoot potential issues.
