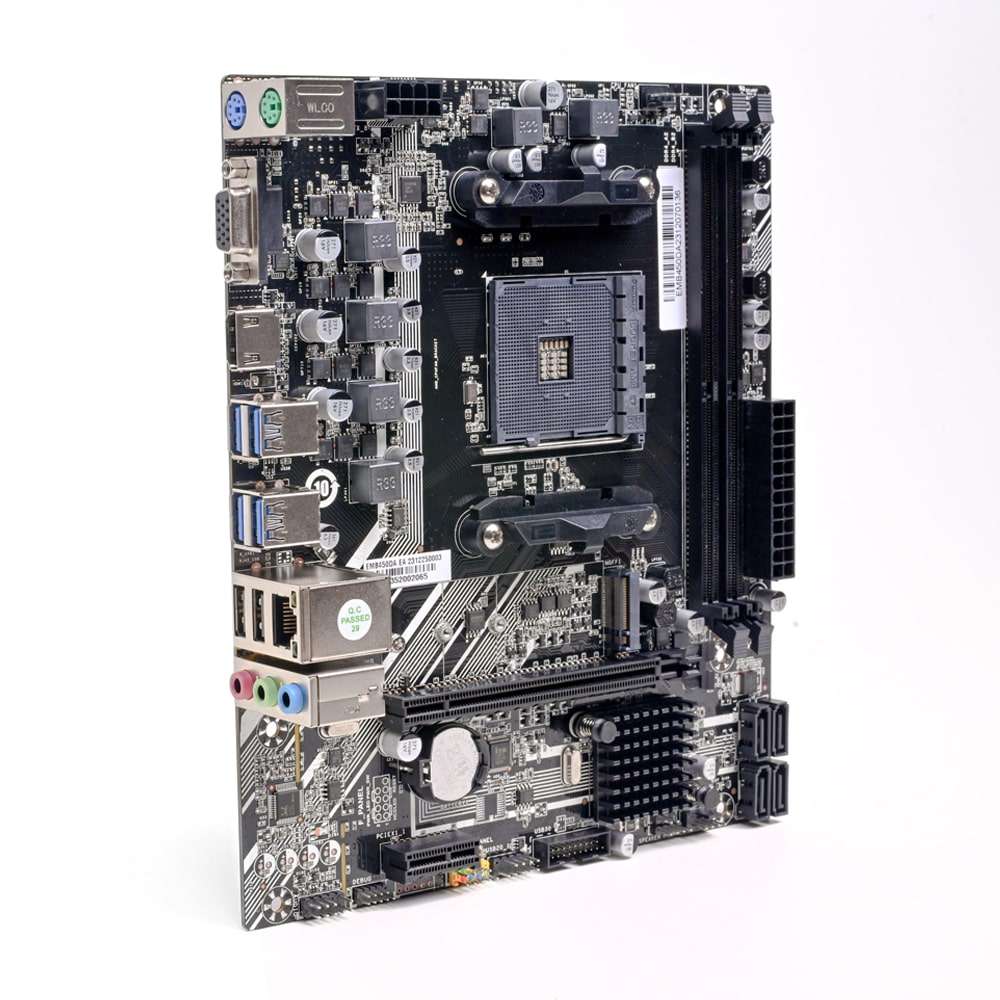

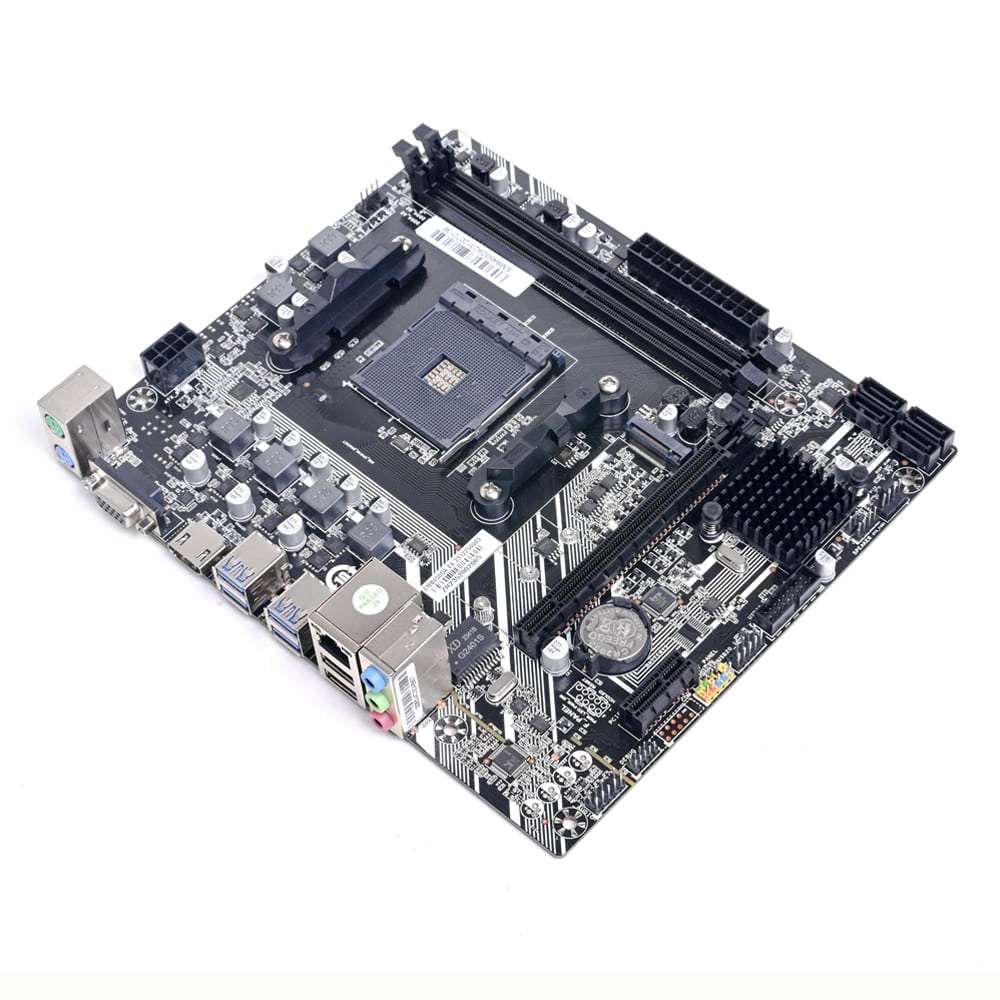

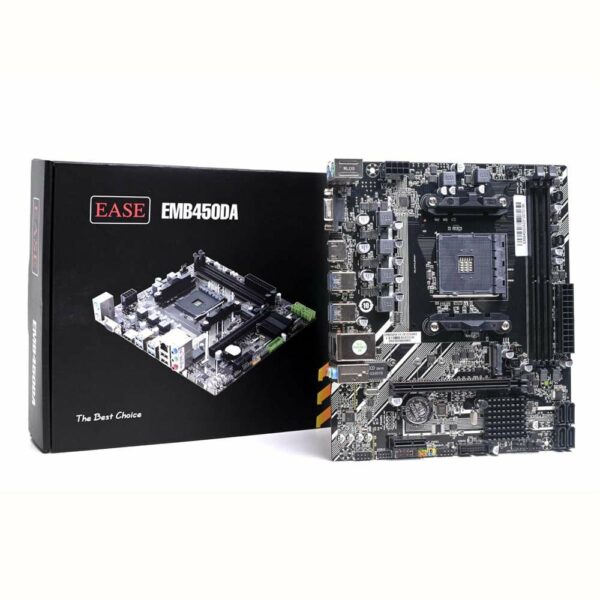

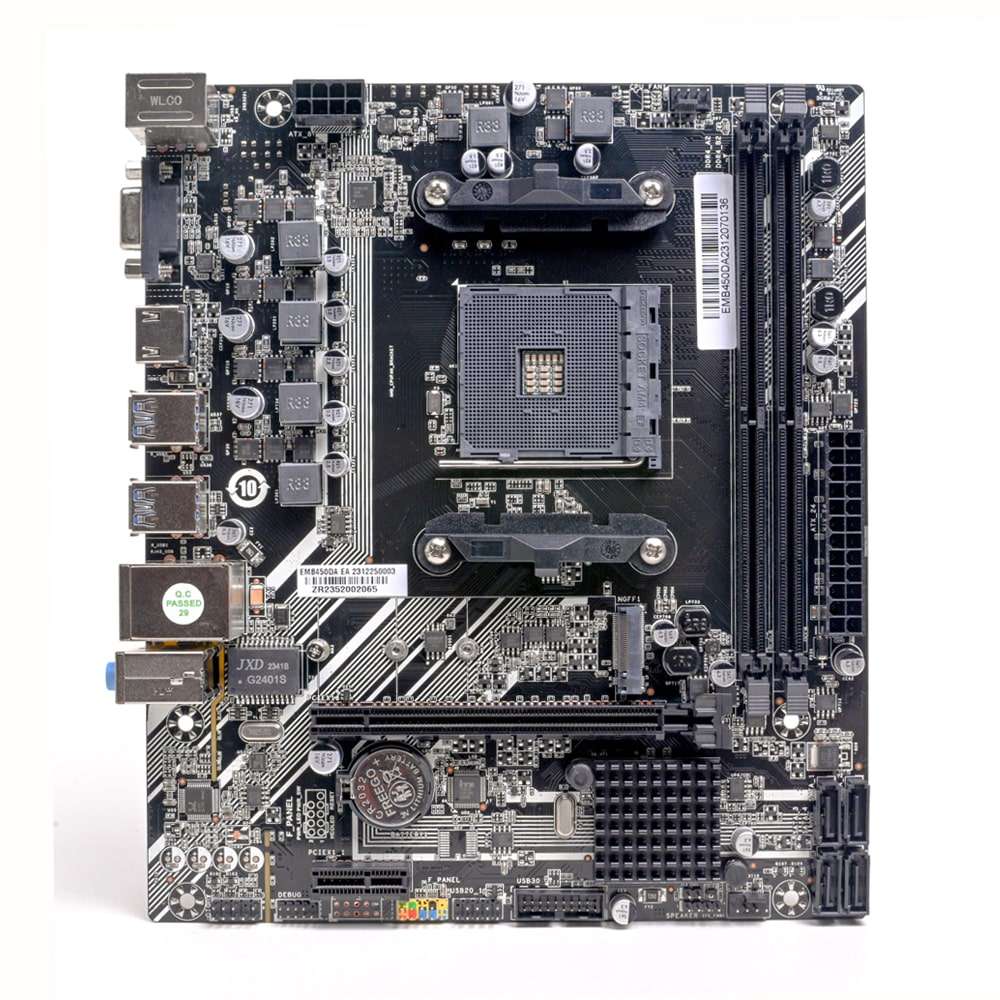

EASE EMB450DA DDR4 Motherboard
Processor Support:
AMD Socket AM4 LGA1331, Support AMD Ryzen 1000/2000/3000/4000/5000 processors
Memory Support:
2*DDR4 2133/2400/2933/3200 DIMM MAX 64GB
Storage:
4*SATA 3.0 PORT 6Gb/s, 1*M.2_SSD (M key NVME 2242/2260/2280)
LAN:
Support 1*RTL8111H 10/100/1000 Mbps Ethernet (Optimal Realtek RTL8106E 10/100Mbps Ethernet) Support Wake on Lan
Audio:
Support Realtek ALC897 high fidelity audio controller (Optional Realtek ALC662 high fidelity audio controller)
Ease EMB450DA Specifications |
|
| Brand | Ease |
| Model | EMB450DA |
| Processor Support | Support AMD 7th APU A8/A10/A12 Series/ Support Athlon 200GE And Ryzen 1000/2000/3000/4000/5000 series CPU Support AMD AM4 Socket 1331 CPU |
| Chipset | AMD B450 Chipset |
| Memory Support | 2 x DDR4 DIMM Slot, Support DDR4 2400/2666/2800/3200MHZ Max to 64GB |
| LAN | Onboard Realtek® 8111H 1000Mbps LAN |
| Audio | Realtek 6 Channel HD Audio |
| SATA | 4 SATA 3.0, Support AHCI |
| USB | 6* USB 3.0 Ports(4 On the rear panel, 2 onboard pins) |
| 4* USB 2.0 Ports(2 On the rear panel, 2 onboard pins) | |

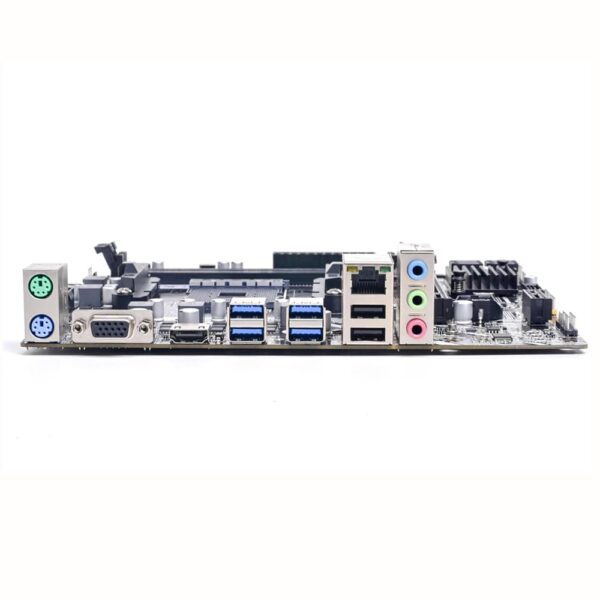

| Back Panel | 1 x Ps2 Keyboard & Mouse Port |
| 1 x VGA Port | |
| 1 x HDMI Port | |
| 4 x USB3.0 Ports | |
| 2 x USB 2.0 Ports | |
| 1 x RJ45 Port | |
| 1 Audio Jacks(Line in/ Line Out/ Mic in) | |
| On-Board Pinheaders/Connectors | 1 x USB 3.0 Pinheader |
| 1 x USB 2.0 Pinheader | |
| 1 x Front-Panel Audio Pin header | |
| 1 x Front-Panel Pinheader | |
| 1 x Fan Connector | |
| 1 x 24-Pin ATX Power Connector | |
| 1 x 8-Pin ATX | |
| 1 x CLR_COM Pinheader | |
| 1 x SPEAK Pinheader | |
| Slots | 1 x PCI Express x 16 Slot |
| 1 x PCI Express x 1 Slot | |
| 1 x M.2 SSD Slot(Support 2242/2280 SATA/NVME) | |
| Form Factor | Micro-ATX(21.5m x 18.5 cm),6 mounting holes |
| Acessories (Optional) | 1X 4-pin SATA data cable |
| 1X I/O Backboard | |
| 1X User Manual | |
| 1X Drives intalled CD | |
