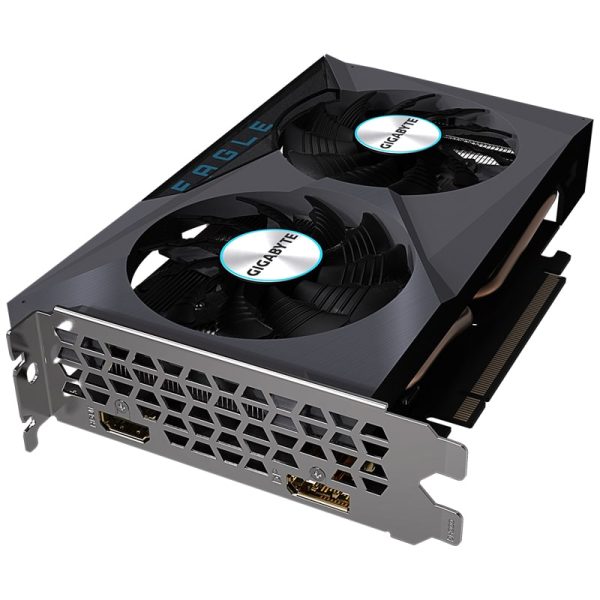

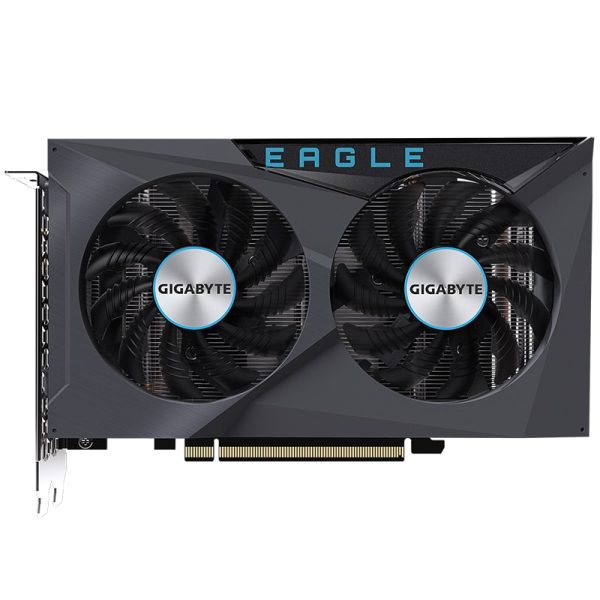

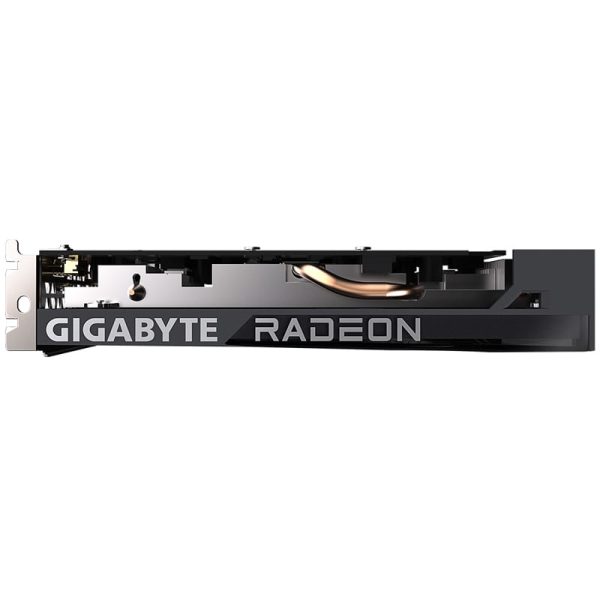

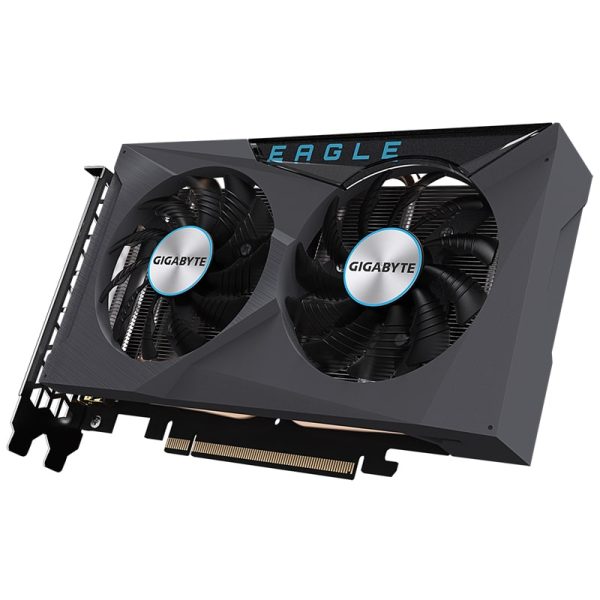

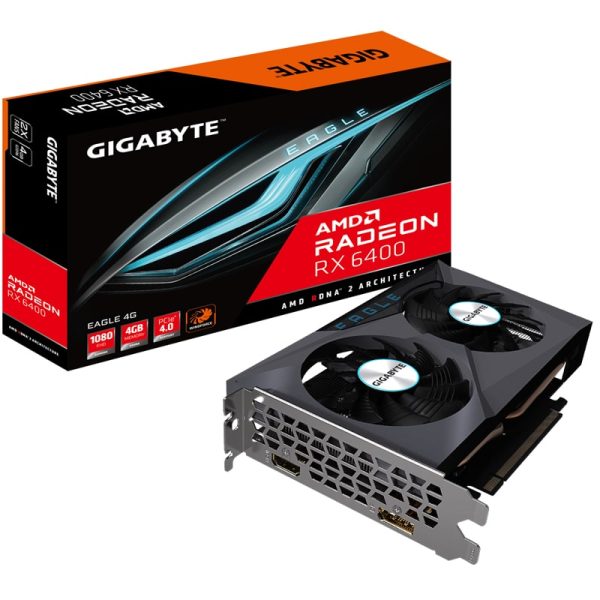

Gigabyte Radeon RX 6400 EAGLE 4G
Gigabyte Radeon RX 6400 EAGLE 4G Overview
WINDFORCE 2X COOLING SYSTEM
Gigabyte RX 6400 EAGLE 4G’s WINDFORCE 2X cooling system features two unique blade fans, alternate spinning, composite copper heat pipes, copper plate and 3D active fan, which together provide high efficiency heat dissipation.

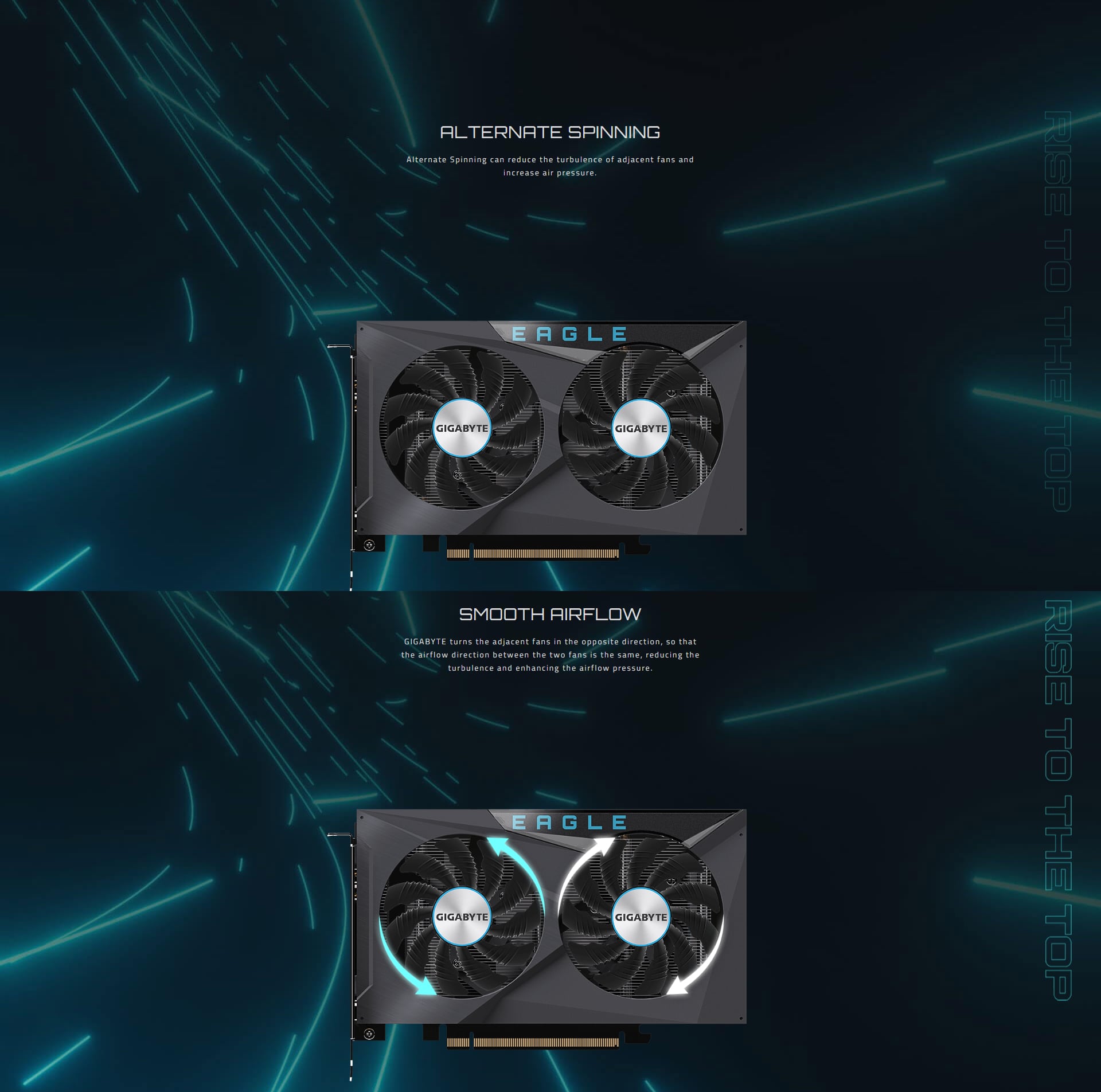

Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
HEAT PIPES AND COPPER PLATE
The shape of the pure copper heat pipe contacts with the GPU through a copper plate.
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
