The SSD that goes further
Accelerate into next-gen computing. The Samsung 970 EVO delivers breakthrough speeds, best-in-class reliability, and a broad range of capacity options up to 2TB*. The latest V-NAND, new Phoenix controller, and Intelligent TurboWrite technology enhance high-end gaming and 4K & 3D graphic editing. 1
Next level SSD speed
Feel the NVMe difference. The 970 EVO transforms high-end gaming and streamlines graphic-intensive workflows with the new Phoenix controller and Intelligent TurboWrite technology. Get stunning sequential read/write speeds of 3,500/2,500 MB/s*, up to 32% faster writes than the previous generation. 2 3 4
Design Flexibility

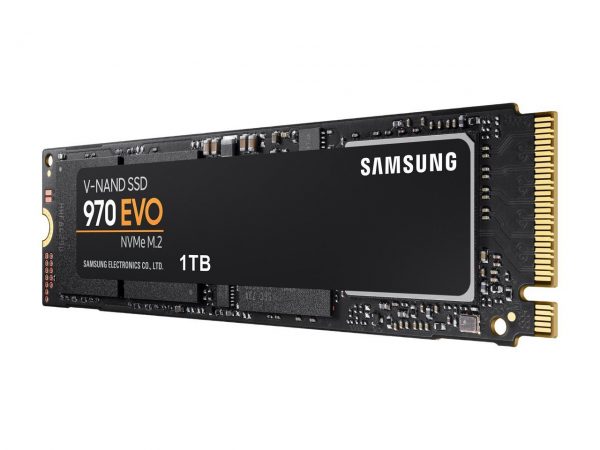

The next advancement in NVMe SSDs. The 970 EVO fits up to 2TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung’s innovative technology empowers you with the capacity to do more and accomplish more.
Exceptional Endurance
The new standard in sustainable performance. Get up to 1,200 TBW* with a 5-year limited warranty, achieving 50 percent higher than the previous generation. The 970 EVO provides exceptional endurance powered by the latest V-NAND technology and Samsung’s reputation for quality. 5 6 7
Unparalleled Reliability
Achieve a new level of drive confidence. Samsung’s advanced nickel-coated controller and heat spreader on the 970 EVO enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops.
Samsung Magician
Advanced drive management made simple. Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.
Specification
|
Collapse group heading
Type
|
||
|---|---|---|
| Product Type |
NVMe SSD
|
|
| Storage Type |
Internal
|
|
| Interface |
PCIe Gen 3.0 x4, NVMe 1.3
|
|
| Read/Write Speeds |
3,400/2,500 MB/s
|
|
| Usage Application |
Client PCs
|
|
| Series |
SSD 970 EVO
|
|
|
Collapse group heading
Storage
|
||
| Capacity |
1TB
|
|
|
Collapse group heading
Key Features
|
||
| Sequential Read Speed |
Up to 3,400 MB/s * Performance may vary based on system hardware & configuration
|
|
| Sequential Write Speed |
Up to 2,500 MB/s * Performance may vary based on system hardware & configuration
|
|
| Random Read Speed |
Random Read (4KB, QD32): Up to 500,000 IOPS Random Read
Random Read (4KB, QD1): Up to 15,000 IOPS Random Read * Performance may vary based on system hardware & configuration |
|
| Random Write Speed |
Random Write (4KB, QD32): Up to 450,000 IOPS Random Write
Random Write (4KB, QD1): Up to 50,000 IOPS Random Write * Performance may vary based on system hardware & configuration |
|
| Controller |
Samsung Phoenix Controller
|
|
| NAND Flash |
Samsung V-NAND 3-bit MLC
|
|
| Trim Support |
Supported
|
|
| AES Encryption |
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
|
|
| Security |
AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)
|
|
| S.M.A.R.T. Support |
Supported
|
|
| GC (Garbage Collection) |
Auto Garbage Collection Algorithm
|
|
| Device Sleep Mode Support |
Yes
|
|
| Internal Storage |
Yes
|
|
| Temperature proof |
Yes
|
|
| Gaming SSDs |
Yes
|
|
|
Collapse group heading
General
|
||
| Average Power Consumption (system level) |
* Average: 6 W * Maximum: 10 W (Burst mode)
* Actual power consumption may vary depending on system hardware & configuration |
|
| Power consumption (Idle) |
Max. 30 mW
* Actual power consumption may vary depending on system hardware & configuration |
|
| Voltage |
3.3 V ± 5 % Allowable voltage
|
|
| Reliability (MTBF) |
1.5 Million Hours Reliability (MTBF)
|
|
|
Collapse group heading
Environmental Specs
|
||
| Operating Temperature |
0 – 70 ℃ Operating Temperature
|
|
| Shock |
1,500 G & 0.5 ms (Half sine)
|
|
|
Collapse group heading
Form Factor
|
||
| Product |
M.2 (2280)
|
|
|
Collapse group heading
Dimensions (W x H x D)
|
||
| Product |
3.16″ x 0.87″ x 0.09″
|
|
|
Collapse group heading
Weight
|
||
| Product |
0.28oz.
|
|
|
Collapse group heading
Software
|
||
| Management SW |
Magician Software for SSD management
|
|
|
Collapse group heading
Warranty
|
||
| Product |
5-Year Limited Warranty or 600 TBW Limited Warranty
|
|
Categories: PC Components, Samsung, SATA/NVMe SSD
