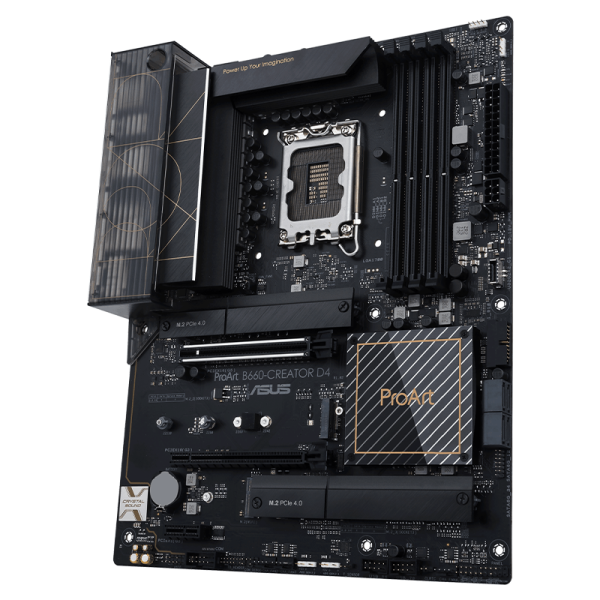

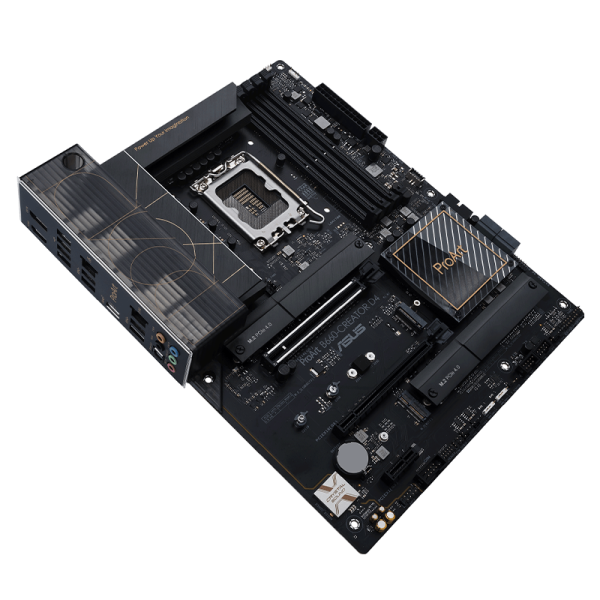

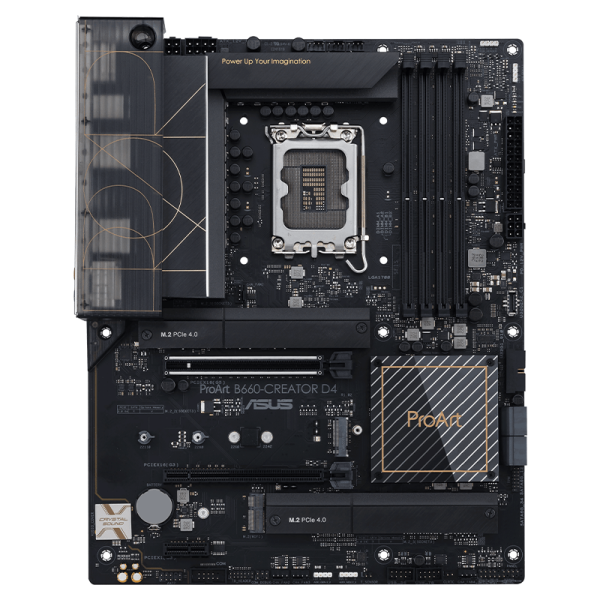

ASUS ProArt B660-CREATOR D4 Motherboard
ASUS ProArt B660-CREATOR D4 Motherboard Overview
Your Powerhouse for Creativity
ProArt B660-Creator D4 is an enhanced motherboard designed for intensive content-creation workloads like 3D rendering and 4K/8K video editing. It unleashes the performance of 12th Gen Intel® Core™ processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2×2 Type-C® front-panel connector with Quick Charge 4+, and DisplayPort™ via USB-C.

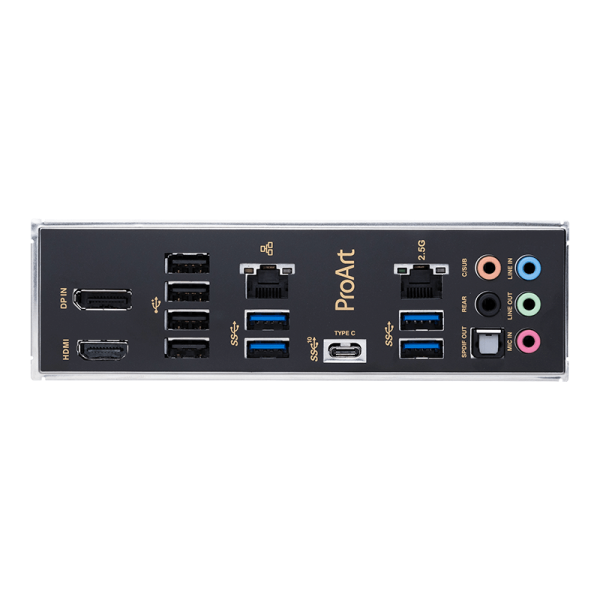

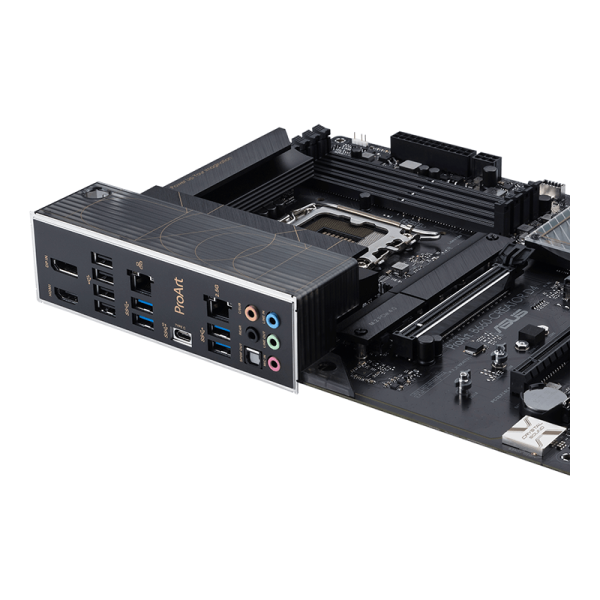

An array of powerful I/O ports — including 2.5 Gb and 1 Gb Ethernet ports and three M.2 slots — enables quick data transfers and extensive storage options.
USB-C DisplayPort (DP Alt Mode)
This USB Type-C® port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort™ 1.4 output for up to 8K resolution at 60 Hz. This new feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display*.
*This functionality requires the bundled DP-to-DP cable to be connected from an installed graphics card to the DP IN port located on the rear I/O panel of the motherboard.
USB 3.2 Gen 2×2 Type-C® Front-Panel Connector with Quick Charge 4+
A USB 3.2 Gen 2×2 connector boosts Type-C data transfers with speeds of up to 20 Gbps. The connector also features Quick Charge 4+ technology that can quickly charge devices up to 60 W with a PCIe power supply cable plugged into the nearby 6-pin connector.
With tailored CPU power delivery and support for high-performance memory, ProArt B660-Creator D4 easily handles the demands of the latest 12th Gen Intel Core processors. It features an intelligent VRM design that’s rated for 50 amps, plus carefully selected components and memory layout optimizations for multithreaded tasks such as 3D animation and video editing.
Teamed power stages
12+1 power stages rated for 50 amps combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest 12th Gen Intel Core processors demand.
Digi+ Power Control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.
ProCool power connector
The ASUS ProCool socket is built to exacting specifications to ensure flush contact with PSU power lines, enabling lower impedance and better heat dissipation.
Optimized Cooling Design
Maintaining system stability under heavy loads is of paramount importance, so ProArt B660-Creator D4 features comprehensive cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. Integrated premium components and multiple fan headers are also vital design elements that provide the best foundation for content creation systems.
Perfect for Content Creation
ProArt exclusive software utilities deliver intuitive system monitoring, audio and networking enhancements that enable a smoother workflow.
Two-Way AI Noise Cancelation
ASUS Control Center Express software offers advanced security management functions to protect the system and confidential data.
USB port management
Enable or disable USB ports or set them to Read Only to prevent data leaks.
For added security, a software blacklist is available to help identify high-risk applications.
ProArt B660-Creator D4 can prevent unauthorized changes to system configuration.
Registry editor enabled/disabled
Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations.
ProArt B660-Creator D4 is engineered and rigorously tested to offer superior quality, stability and compatibility ? all to ensure that it empowers creativity for years to come.
